PURPOSE:

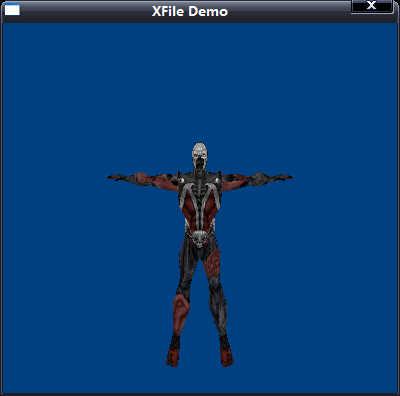

XFile/Skinned Mesh Demo
***************************************************************************************/
#include <windows.h>
#include <stdio.h>
#include "d3d9.h"
#include "d3dx9.h"
#include "DxFile.h"
#include "RmxfGuid.h"
#include "RmxfTmpl.h"
#pragma comment(lib, "dxguid.lib")
#pragma comment(lib, "winmm.lib")
#pragma comment(lib, "d3d9.lib")
#pragma comment(lib, "d3dx9.lib")
#pragma comment(lib, "d3dxof.lib")
#pragma warning(disable : 4305 4996)#define WINDOW_WIDTH 400
#define WINDOW_HEIGHT 400#define Safe_Release(p) if(p) (p)->Release();
#define Release_Com(p) if(p) { (p)->Release(); (p) = NULL; }
// window handles, class and caption text.
HWND g_hwnd;
HINSTANCE g_inst;
static char g_class_name[] = "XFileClass";
static char g_caption[] = "XFile Demo";
// the Direct3D and device object
IDirect3D9* g_d3d = NULL;
IDirect3DDevice9* g_d3d_device = NULL;
//------------------------------------------------------------------
// A Mesh definition structure
//------------------------------------------------------------------
typedef struct MESH
{
char* m_name; // name of mesh
ID3DXMesh* m_mesh; // mesh object
ID3DXMesh* m_skinmesh; // skin mesh object
ID3DXSkinInfo* m_skininfo; // skin information
DWORD m_num_materials; // number of materails in mesh
D3DMATERIAL9* m_materials; // array of materials
IDirect3DTexture9** m_textures; // array of textures // clear all structure data
MESH()
{
m_name = NULL;
m_mesh = NULL;
m_skinmesh = NULL;
m_skininfo = NULL;
m_num_materials = 0;
m_materials = NULL;
m_textures = NULL;
}
// free all used resources
~MESH()
{
delete[] m_name;
m_name = NULL;
Release_Com(m_mesh);
Release_Com(m_skinmesh);
Release_Com(m_skininfo);
delete[] m_materials;
m_materials = NULL;
// release all textures resource
if(m_textures != NULL)
{
for(DWORD i = 0; i < m_num_materials; i++)
Release_Com(m_textures[i]);
delete[] m_textures;
m_textures = NULL;
}
}
} MESH;
//------------------------------------------------------------------
// Structure to contain frame information
//------------------------------------------------------------------
typedef struct FRAME
{
char* m_name; // frame's name
MESH* m_mesh; // linked list of meshes
FRAME* m_child; // child frame
FRAME()
{
// clear all data
m_name = NULL;
m_mesh = NULL;
m_child = NULL;
}
~FRAME()
{
// delete all used resources, including linked list of frames.
delete[] m_name; m_name = NULL;
delete m_mesh; m_mesh = NULL;
delete m_child; m_child = NULL;
}
} FRAME;
// parent frame for .X file
FRAME* g_parent_frame = NULL;
//--------------------------------------------------------------------------------
// Window procedure.
//--------------------------------------------------------------------------------
long WINAPI Window_Proc(HWND hwnd, UINT msg, WPARAM wParam, LPARAM lParam)
{
switch(msg)
{
case WM_DESTROY:
PostQuitMessage(0);
return 0;
}return (long) DefWindowProc(hwnd, msg, wParam, lParam);
}
//--------------------------------------------------------------------------------
// Parse specified xfiel data, recursive function.
//--------------------------------------------------------------------------------
void Parse_XFile_Data(ID3DXFileData* xfile_data, FRAME* parent_frame)
{
ID3DXFileData* sub_xfile_data = NULL;
ID3DXBuffer* adjacency = NULL;
GUID type;
char* name = NULL;
DWORD size;
MESH* mesh = NULL;
ID3DXBuffer* material_buffer = NULL;
D3DXMATERIAL* materials = NULL;
// get the template type
// retrieves the globally unique identifier (GUID) of the object's template
if(FAILED(xfile_data->GetType(&type)))
return;
// get the template name (if any)
// retrieves a pointer to a microsoft directX file object's name
if(FAILED(xfile_data->GetName(NULL, &size)))
return;
if(size != 0)
{
if((name = new char[size]) != NULL)
xfile_data->GetName(name, &size);
}
// give template a default name if none found
if(name == NULL)
{
if((name = new char[9]) == NULL)
return;
strcpy(name, "Template");
}
// set sub frame
FRAME* sub_frame = parent_frame;
// process the templates
FRAME* frame = NULL;
if(type == TID_D3DRMFrame) // it is a frame
{
// create a new frame structure
frame = new FRAME();
// store the name
frame->m_name = name;
name = NULL;
// add to parent frame
parent_frame->m_child = frame;
// set sub frame parent
sub_frame = frame;
}
else if(type == TID_D3DRMMesh) // it is a mesh
{
// create a new mesh structure
mesh = new MESH();
// store the name
mesh->m_name = name;
name = NULL;
// load mesh data (as a skinned mesh)
// loads a skin mesh from microsoft directX .x file data object
if(FAILED(D3DXLoadSkinMeshFromXof(xfile_data, 0, g_d3d_device, &adjacency, &material_buffer, NULL,
&mesh->m_num_materials, &mesh->m_skininfo, &mesh->m_mesh)))
{
delete[] name;
delete mesh;
return;
}
Release_Com(adjacency);
// clone skin mesh if bones exist
if(mesh->m_skininfo != NULL && mesh->m_skininfo->GetNumBones() != 0)
{
// clones a mesh using a flexible vertex format (FVF) code
if(FAILED(mesh->m_mesh->CloneMeshFVF(0, mesh->m_mesh->GetFVF(), g_d3d_device, &mesh->m_skinmesh)))
{
mesh->m_skininfo->Release();
mesh->m_skininfo = NULL;
}
}
// load materials or create a default one if none
if(mesh->m_num_materials == 0)
{
// create a default one
mesh->m_materials = new D3DMATERIAL9[1];
mesh->m_textures = new LPDIRECT3DTEXTURE9[1];
ZeroMemory(mesh->m_materials, sizeof(D3DMATERIAL9));
mesh->m_materials[0].Diffuse.r = 1.0;
mesh->m_materials[0].Diffuse.g = 1.0;
mesh->m_materials[0].Diffuse.b = 1.0;
mesh->m_materials[0].Diffuse.a = 1.0;
mesh->m_materials[0].Ambient = mesh->m_materials[0].Diffuse;
mesh->m_materials[0].Specular = mesh->m_materials[0].Diffuse;
mesh->m_textures[0] = NULL;
mesh->m_num_materials = 1;
}
else
{
// load the materials
materials = (D3DXMATERIAL*) material_buffer->GetBufferPointer();
mesh->m_materials = new D3DMATERIAL9[mesh->m_num_materials];
mesh->m_textures = new LPDIRECT3DTEXTURE9[mesh->m_num_materials];
// set materials and textures for mesh
for(DWORD i = 0; i < mesh->m_num_materials; i++)
{
mesh->m_materials[i] = materials[i].MatD3D;
mesh->m_materials[i].Ambient = mesh->m_materials[i].Diffuse;
// build a texture path and load it
if(FAILED(D3DXCreateTextureFromFile(g_d3d_device, materials[i].pTextureFilename, &mesh->m_textures[i])))
mesh->m_textures[i] = NULL;
}
}
Release_Com(material_buffer);
// set mesh to parent frame
parent_frame->m_mesh = mesh;
} // end if(type == TID_D3DRMMesh)
else if(type == TID_D3DRMAnimationSet || type == TID_D3DRMAnimation || type == TID_D3DRMAnimationKey)
{
// skip animation sets and animations
delete[] name;
return;
}
// release name buffer
delete[] name;
SIZE_T num_child;
xfile_data->GetChildren(&num_child);
// scan for embedded templates
for(SIZE_T i = 0; i < num_child; i++)
{
xfile_data->GetChild(i, &sub_xfile_data);
// process embedded xfile data, recursive call.
Parse_XFile_Data(sub_xfile_data, sub_frame);
Release_Com(sub_xfile_data);
}
}
//--------------------------------------------------------------------------------
// Parse x file, and return root frame.
//--------------------------------------------------------------------------------
FRAME* Parse_XFile(char* filename)
{
ID3DXFile* xfile = NULL;
ID3DXFileEnumObject* xfile_enum = NULL;
ID3DXFileData* xfile_data = NULL;
// create the file object
if(FAILED(D3DXFileCreate(&xfile)))
return NULL;
// register the templates
if(FAILED(xfile->RegisterTemplates((LPVOID) D3DRM_XTEMPLATES, D3DRM_XTEMPLATE_BYTES)))
{
xfile->Release();
return NULL;
}
// create an enumerator object that will read a .x file
if(FAILED(xfile->CreateEnumObject((LPVOID) filename, DXFILELOAD_FROMFILE, &xfile_enum)))
{
xfile->Release();
return NULL;
}
// allocate a frame that becomes root
FRAME* frame = new FRAME();
SIZE_T num_child;
// retrieve the number of children in this file data object
xfile_enum->GetChildren(&num_child);
// loop through all objects looking for the frames and meshes
for(SIZE_T i = 0; i < num_child; i++)
{
// retrieves a child object in this file data object
if(FAILED(xfile_enum->GetChild(i, &xfile_data)))
return NULL;
// parse xfile data
Parse_XFile_Data(xfile_data, frame);
Release_Com(xfile_data);
}
// release xfile enumerator object and xfile object
Release_Com(xfile_enum);
Release_Com(xfile);
// return root frame
return frame;
}
//--------------------------------------------------------------------------------
// Initialize d3d, d3d device, vertex buffer; set render state for d3d;
// set perspective matrix and view matrix, load xfile.
//--------------------------------------------------------------------------------
BOOL Do_Init()
{
D3DPRESENT_PARAMETERS present_param;
D3DDISPLAYMODE display_mode;
D3DXMATRIX mat_proj, mat_view;
// do a windowed mode initialization of Direct3D
if((g_d3d = Direct3DCreate9(D3D_SDK_VERSION)) == NULL)
return FALSE;
// retrieves the current display mode of the adapter
if(FAILED(g_d3d->GetAdapterDisplayMode(D3DADAPTER_DEFAULT, &display_mode)))
return FALSE;
ZeroMemory(&present_param, sizeof(present_param));
// initialize d3d presentation parameter
present_param.Windowed = TRUE;
present_param.SwapEffect = D3DSWAPEFFECT_DISCARD;
present_param.BackBufferFormat = display_mode.Format;
present_param.EnableAutoDepthStencil = TRUE;
present_param.AutoDepthStencilFormat = D3DFMT_D16;
// creates a device to represent the display adapter
if(FAILED(g_d3d->CreateDevice(D3DADAPTER_DEFAULT, D3DDEVTYPE_HAL, g_hwnd,
D3DCREATE_SOFTWARE_VERTEXPROCESSING, &present_param, &g_d3d_device)))
return FALSE;
// set render state// disable d3d lighting
g_d3d_device->SetRenderState(D3DRS_LIGHTING, FALSE);
// enable z-buffer
g_d3d_device->SetRenderState(D3DRS_ZENABLE, D3DZB_TRUE);
// create and set the projection matrix
// builds a left-handed perspective projection matrix based on a field of view
D3DXMatrixPerspectiveFovLH(&mat_proj, D3DX_PI/4.0, 1.33333, 1.0, 1000.0);
// sets a single device transformation-related state
g_d3d_device->SetTransform(D3DTS_PROJECTION, &mat_proj);
// create and set the view matrix
D3DXMatrixLookAtLH(&mat_view,
&D3DXVECTOR3(0.0, 50.0, -150.0),
&D3DXVECTOR3(0.0, 50.0, 0.0),
&D3DXVECTOR3(0.0, 1.0, 0.0));
g_d3d_device->SetTransform(D3DTS_VIEW, &mat_view);
// load a skinned mesh from an .X file
g_parent_frame = Parse_XFile("warrior.x");
return TRUE;
}
//--------------------------------------------------------------------------------
// Release all d3d resource.
//--------------------------------------------------------------------------------
BOOL Do_Shutdown()
{
delete g_parent_frame;
Safe_Release(g_d3d_device);
Safe_Release(g_d3d);
return TRUE;
}
//--------------------------------------------------------------------------------
// Draw current frame, recursive function.
//--------------------------------------------------------------------------------
void Draw_Frame(FRAME* frame)
{
MESH* mesh;
D3DXMATRIX* matrices = NULL;
ID3DXMesh* mesh_to_draw;
// return if no frame
if(frame == NULL)
return;
// draw meshes if any in frame
if((mesh = frame->m_mesh) != NULL)
{
// setup pointer to mesh to draw
mesh_to_draw = mesh->m_mesh;
// generate mesh from skinned mesh to draw with
if(mesh->m_skinmesh != NULL && mesh->m_skininfo != NULL)
{
DWORD num_bones = mesh->m_skininfo->GetNumBones();
// allocate an array of matrices to orient bones
matrices = new D3DXMATRIX[num_bones];
// set all bones orientation to identity
for(DWORD i = 0; i < num_bones; i++)
D3DXMatrixIdentity(&matrices[i]);
// lock source and destination vertex buffers
void* source = NULL; void* dest = NULL;
// locks a vertex buffer and obtains a pointer to the vertex buffer memory
mesh->m_mesh->LockVertexBuffer(0, &source);
mesh->m_skinmesh->LockVertexBuffer(0, &dest);
// update skinned mesh, applies software skinning to the target vertices based on the current matrices.
mesh->m_skininfo->UpdateSkinnedMesh(matrices, NULL, source, dest);
// unlock buffers
mesh->m_skinmesh->UnlockVertexBuffer();
mesh->m_mesh->UnlockVertexBuffer();
// point to skin mesh to draw
mesh_to_draw = mesh->m_skinmesh;
}
// render the mesh
for(DWORD i = 0; i < mesh->m_num_materials; i++)
{
// set the materials properties for the device
g_d3d_device->SetMaterial(&mesh->m_materials[i]);
// assigns a texture to a stage for a device
g_d3d_device->SetTexture(0, mesh->m_textures[i]);
// draw a subset of a mesh
mesh_to_draw->DrawSubset(i);
}
// free array of matrices
delete[] matrices;
matrices = NULL;
}
// draw child frames, recursively call.
Draw_Frame(frame->m_child);
}
//--------------------------------------------------------------------------------
// Render a frame.
//--------------------------------------------------------------------------------
BOOL Do_Frame()
{
D3DXMATRIX mat_world;
// clear device back buffer
g_d3d_device->Clear(0, NULL, D3DCLEAR_TARGET | D3DCLEAR_ZBUFFER, D3DCOLOR_RGBA(0, 64, 128, 255), 1.0f, 0);
// Begin scene
if(SUCCEEDED(g_d3d_device->BeginScene()))
{
// create and set the world transformation matrix
/// rotate object along y-axis
D3DXMatrixRotationY(&mat_world, (float) (timeGetTime() / 1000.0));
g_d3d_device->SetTransform(D3DTS_WORLD, &mat_world);
// draw frames
Draw_Frame(g_parent_frame);
// end the scene
g_d3d_device->EndScene();
}
// present the contents of the next buffer in the sequence of back buffers owned by the device
g_d3d_device->Present(NULL, NULL, NULL, NULL);
// release texture
g_d3d_device->SetTexture(0, NULL);return TRUE;
}
//--------------------------------------------------------------------------------
// Main function, routine entry.
//--------------------------------------------------------------------------------
int WINAPI WinMain(HINSTANCE inst, HINSTANCE, LPSTR cmd_line, int cmd_show)
{
WNDCLASSEX win_class;
MSG msg;
g_inst = inst;
// create window class and register it
win_class.cbSize = sizeof(win_class);
win_class.style = CS_CLASSDC;
win_class.lpfnWndProc = Window_Proc;
win_class.cbClsExtra = 0;
win_class.cbWndExtra = 0;
win_class.hInstance = inst;
win_class.hIcon = LoadIcon(NULL, IDI_APPLICATION);
win_class.hCursor = LoadCursor(NULL, IDC_ARROW);
win_class.hbrBackground = NULL;
win_class.lpszMenuName = NULL;
win_class.lpszClassName = g_class_name;
win_class.hIconSm = LoadIcon(NULL, IDI_APPLICATION);
if(! RegisterClassEx(&win_class))
return FALSE;
// create the main window
g_hwnd = CreateWindow(g_class_name, g_caption, WS_CAPTION | WS_SYSMENU, 0, 0,
WINDOW_WIDTH, WINDOW_HEIGHT, NULL, NULL, inst, NULL);
if(g_hwnd == NULL)
return FALSE;
ShowWindow(g_hwnd, SW_NORMAL);
UpdateWindow(g_hwnd);
// initialize game
if(Do_Init() == FALSE)
return FALSE;
// start message pump, waiting for signal to quit.
ZeroMemory(&msg, sizeof(MSG));while(msg.message != WM_QUIT)
{
if(PeekMessage(&msg, NULL, 0, 0, PM_REMOVE))
{
TranslateMessage(&msg);
DispatchMessage(&msg);
}
// draw a frame
if(Do_Frame() == FALSE)
break;
}
// run shutdown function
Do_Shutdown();
UnregisterClass(g_class_name, inst);
return (int) msg.wParam;
}
|
